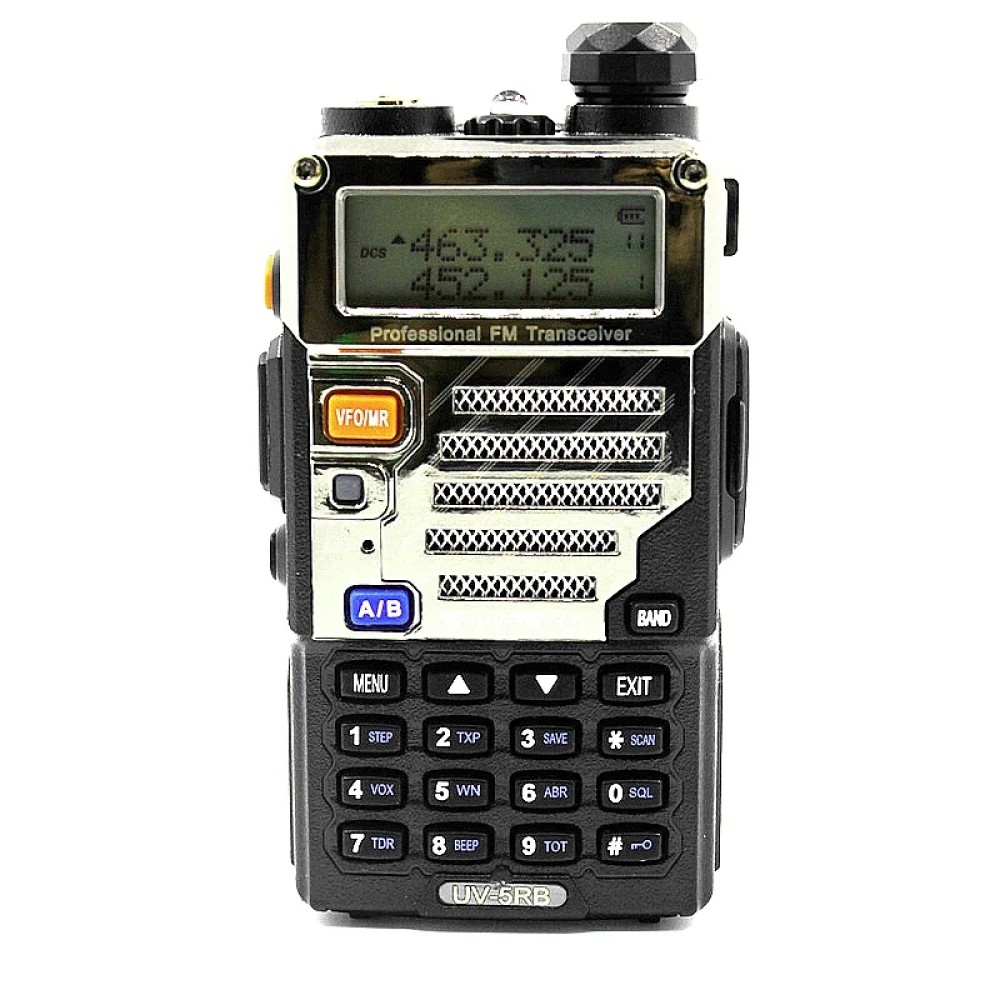

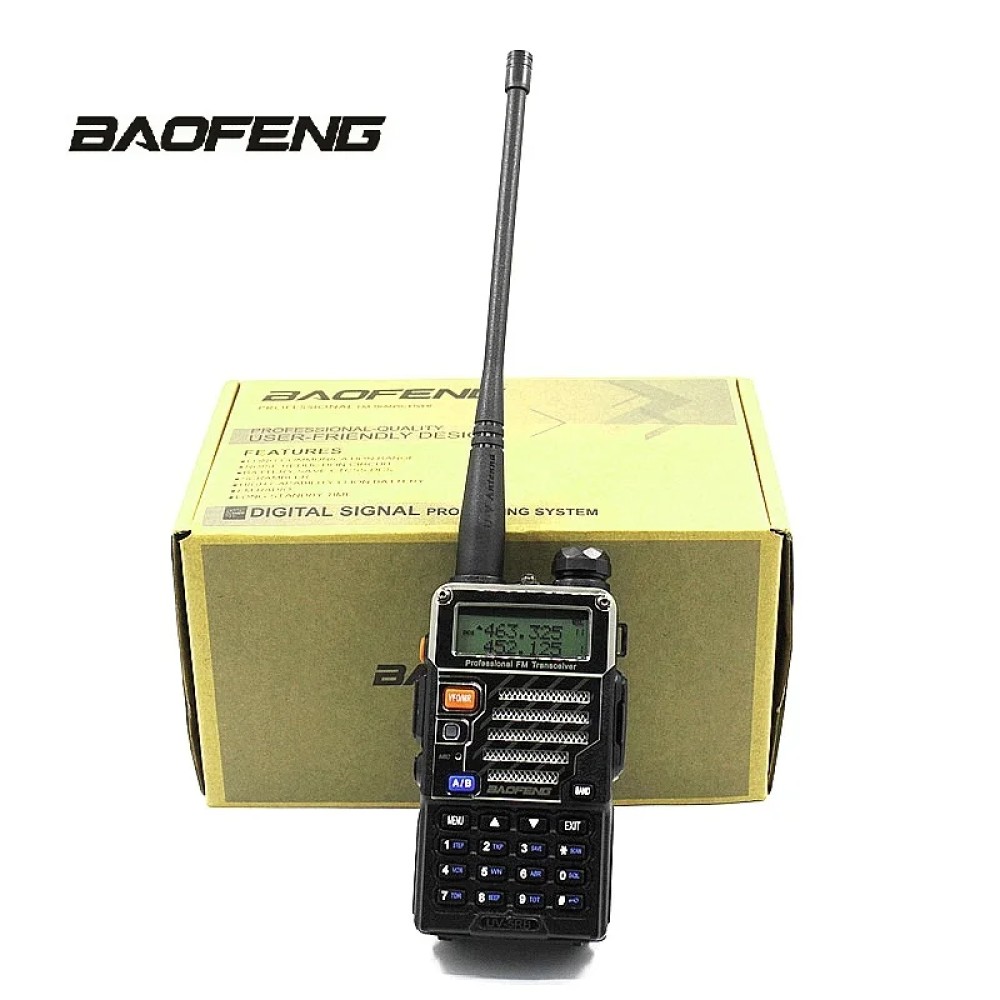

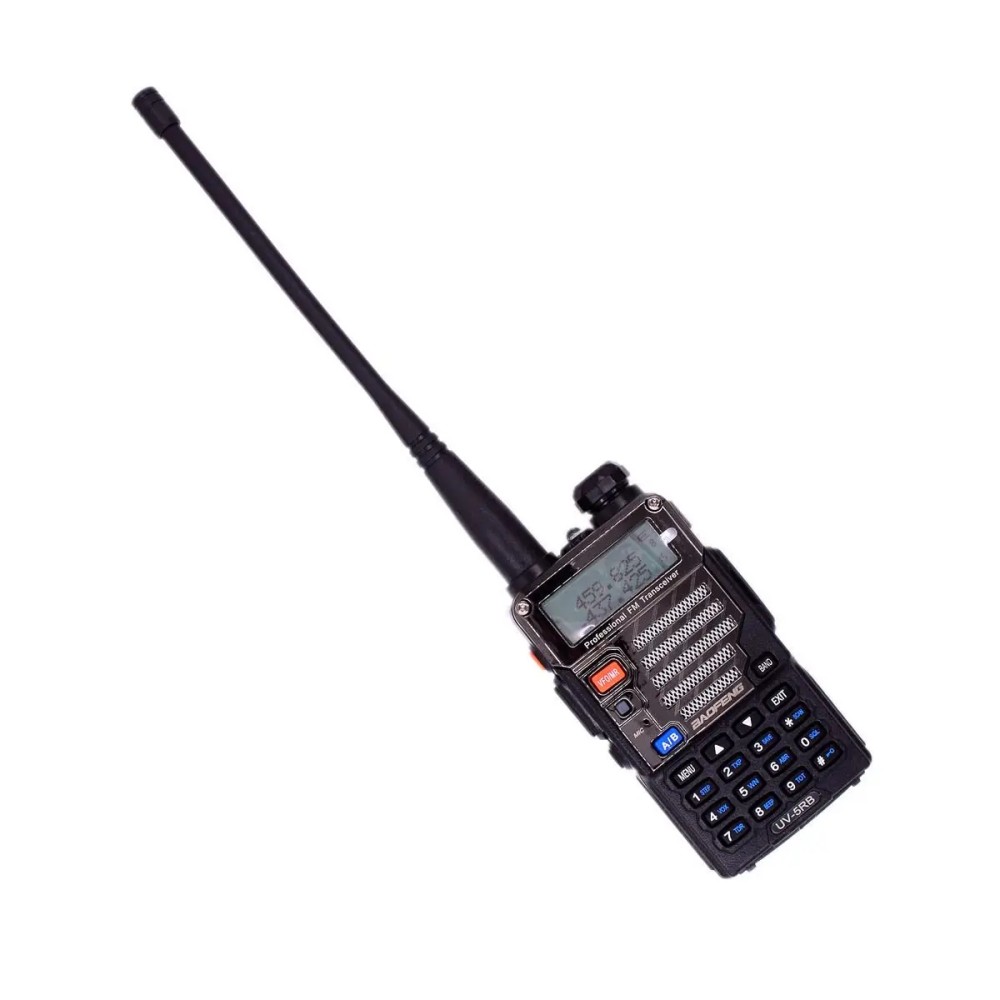

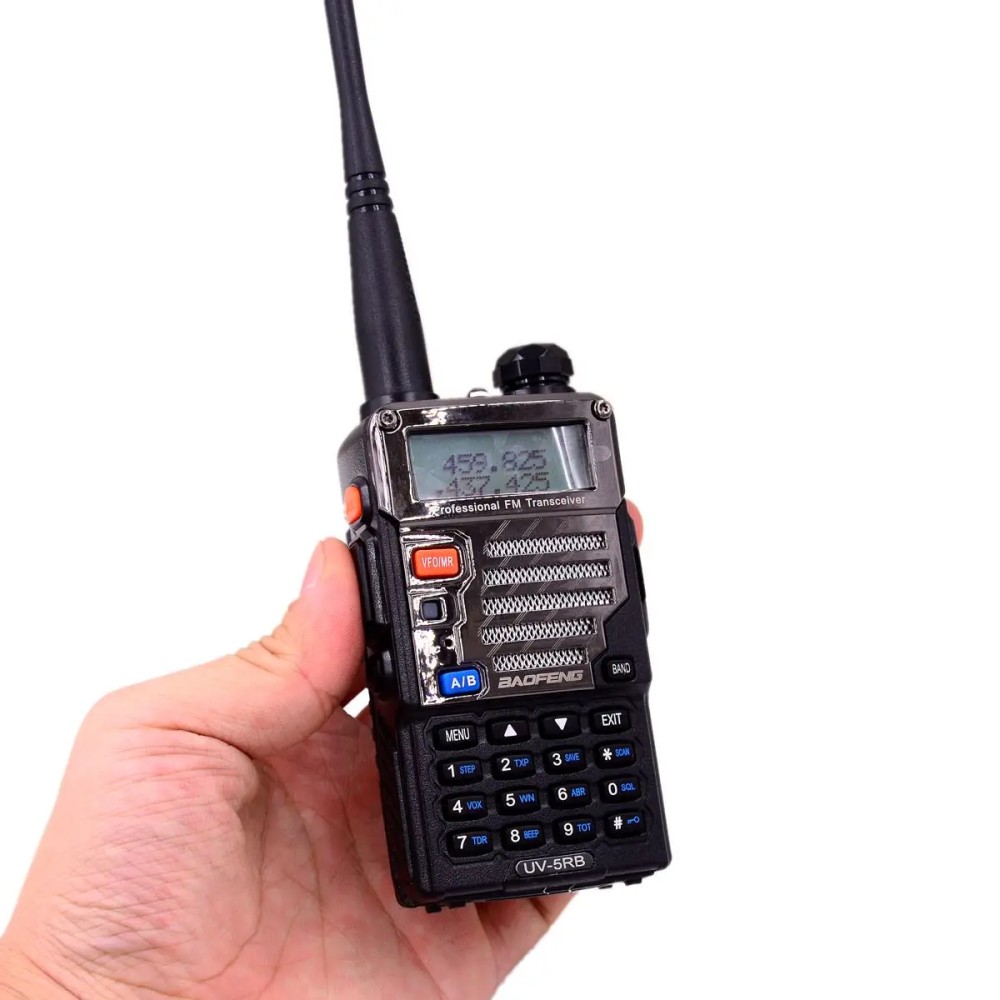

Baofeng 5RB Two Way Radio Frequency Scanner for Police Fire Outdoor Hiking Camping Single Ear Hook PTT Headset FM Transceiver

Frequency Range: 136-174 / 400-520MHz

Dual-Band Display, Dual Freq. Display, Dual-Standby

Output Power: 4 /1Watts

128 Channels

50 CTCSS and 104 CDCSS

Built-in VOX Function

1750Hz Brust Tone

FM Radio (65.0MHz-108.0MHz)

LED Flashlight

Large LCD Display

Hight /Low RF Power Switchable

25KHz/12.5KHz Switchable

Emergency Alert

Low Battery Alert

Battery Saver

Time-out Timer

Keypad Lock

Monitor Channel

Channel Step: 2.5/5/6.25/10/12.5/25KHz

ROGER SET

Item numberUV-5RB

Frequency Range65-108MHz(FM Receive only)

136-174MHZ and 400-520HZ (TX/RX)

Channel No.128

Frequency Stability±2.5ppm

AntennaHigh gain DualBand antenna

Antenna Impedance50Ω

Operating VoltageDC 7.4V

Mode of operationSimple or semi-duplex

Dimension(W x H x D)100 x 52 x 32 mm

Weight250g(including battery, antenna)

Output power4W / 1W (Max 5W)

Modulation Mode16kΦF3E / 11kΦF3E

Maximum deviation＜5kHz(Wide) / ＜2.5kHz(Narrow)

Spurious Radiation＜7μW

Adjacent Ch. power<=-65dB(Wide) / <= -60dB(Narrow)

Pre-emphasis characteristics6dB

Current<=1.6A(5W)

CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity8-12mv

Intermediation distortion＜10%
