In stock
$219.69
parameter:
Brand: MAT-TUNER
Matching impedance: 5-1500 Ω
Weight: about 800g
RF power: 1-120 W(PEP)
Tuning power: 5-10 W
Appearance size: 130x200x40 mm

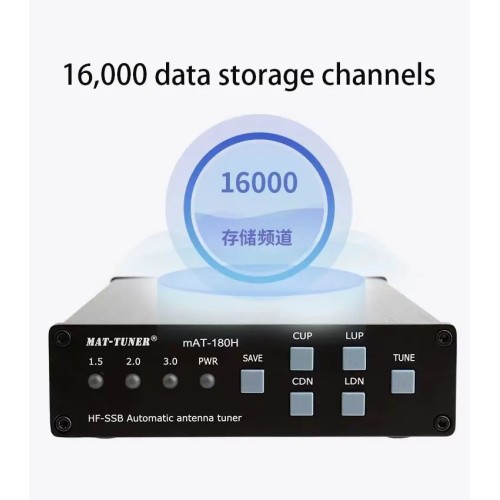

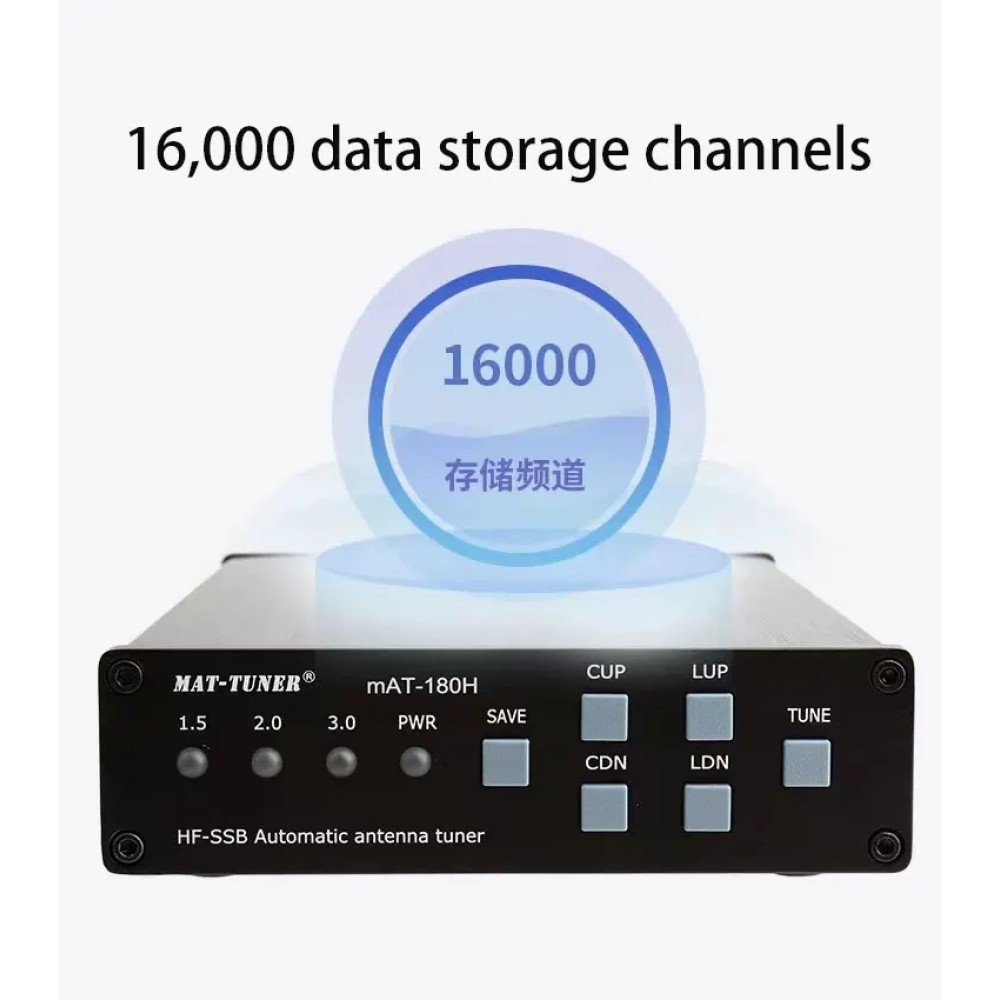

Storage channels: 16,000
Frequency range: 1.8-54MHz (amateur frequency band)
Working method: fully automatic
Tuning time: complete tuning time ≤ 5 seconds, storage tuning time ≤ 0.1 seconds
Power supply method: powered by the radio through data cable
Working current: ≤0.5A

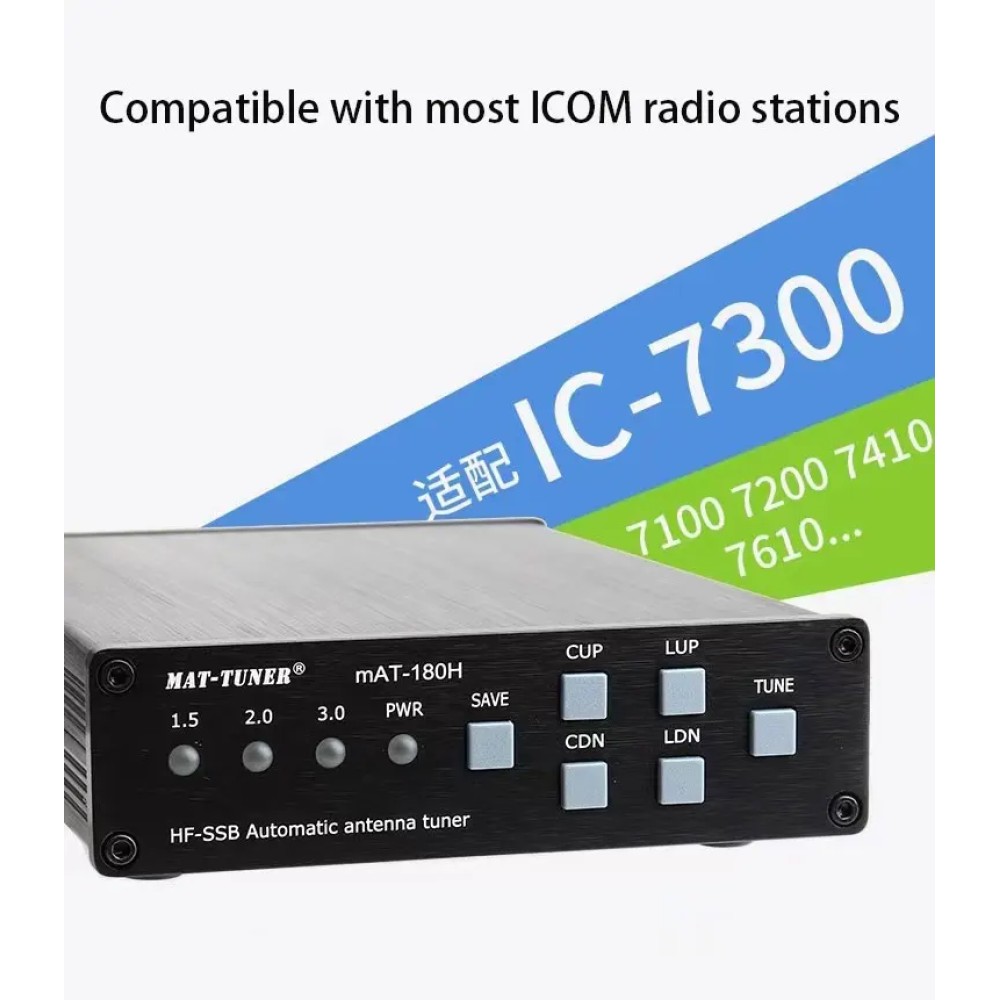

Applicable models:
ICOM: IC-706.703.718,7000,7100,7200.
7300, 7410, 746, 756, 7600, etc.
Kenwood: TRC-80, TK-80, TS-2000, TS-50, TS-450, TS-480SAT, TS-570, TS-590, TS-850.TS-870.TS-990, etc.

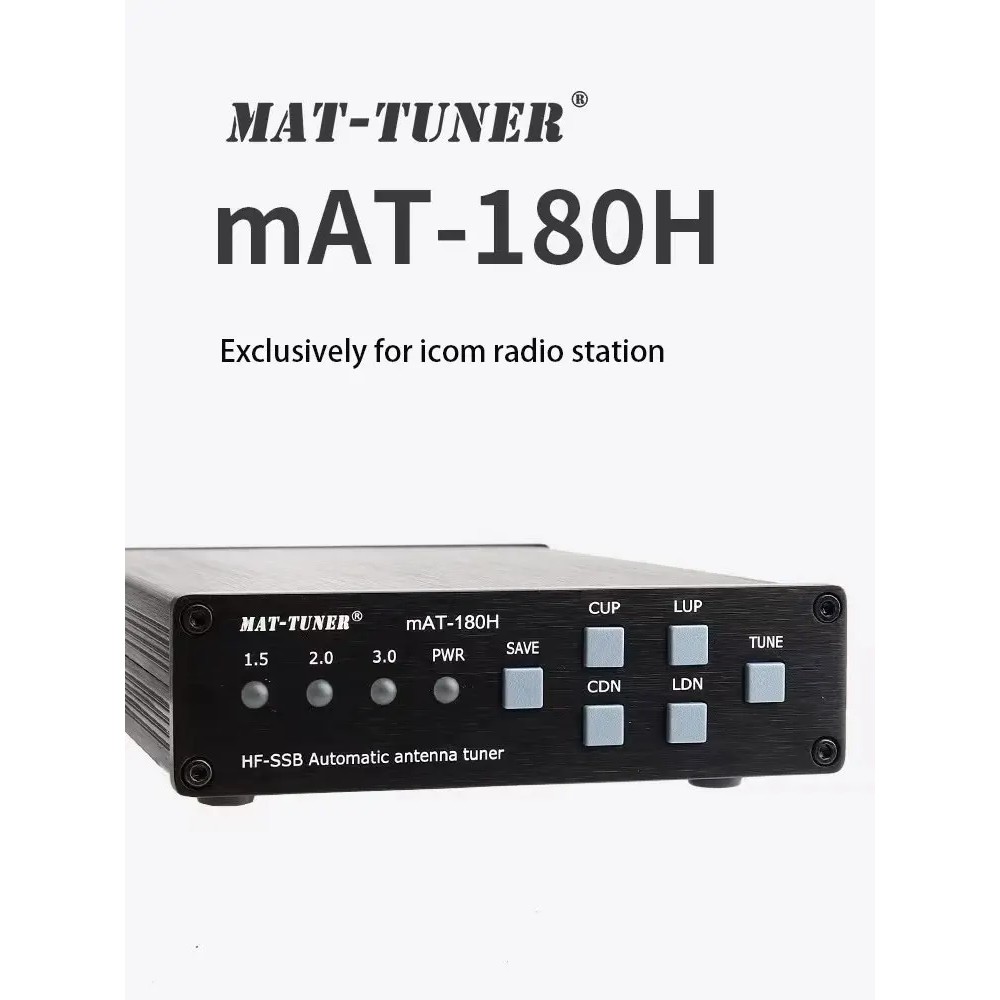

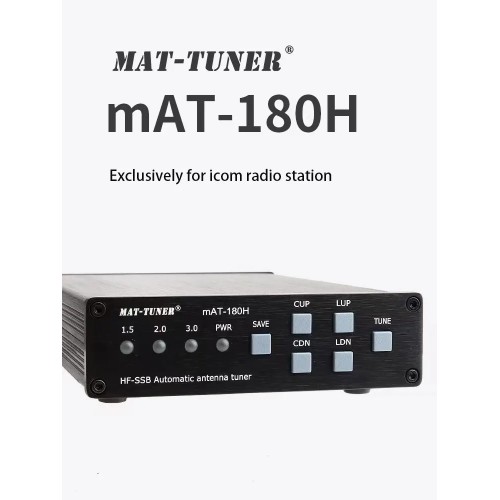

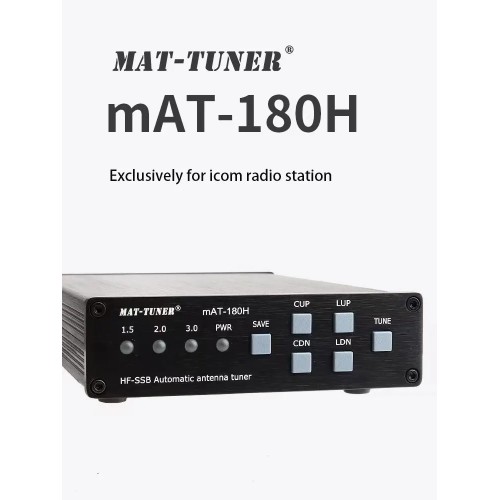

This tuner is specially designed to work with ICOM and Kenwood radio stations, and is fully compatible with ICOM's AH-3, AH-4 and Kenwood automatic tuners. The operation method is the same as the original tuner. One-click tuning is simple and convenient.
It can well tune dipole antennas including horizontal, inverted V, positive V, Yagi, and frame antennas. It can also tune monopole antennas such as long line, diagonal pull, and whip antennas. Its performance is far better than ordinary built-in antenna tuners.

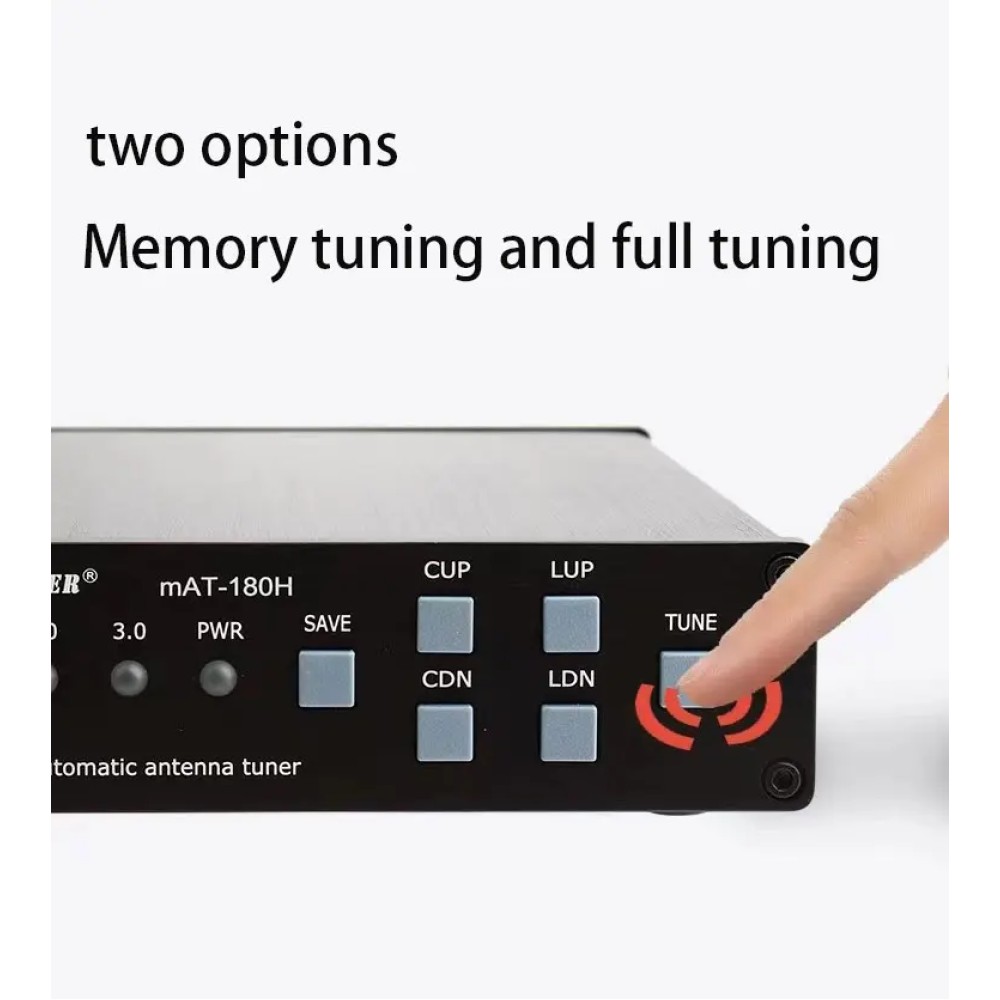

The Tiantun has a manual fine-tuning function, which can achieve manual fine-tuning based on automatic tuning in order to achieve the lowest standing wave ratio.
Features:
Fully compatible with the original tuner, you can tune with one click through the front panel of the radio station
Equipped with special long-line terminals, suitable for long-line antennas
With manual fine-tuning function, it can be manually fine-tuned to the lowest standing wave ratio based on automatic tuning.
With frequency tracking function, it can automatically set matching data following changes in radio frequency
It comes with a dedicated data line and is powered by the radio through the data line, no additional power supply is required.
The shell is processed by aluminum milling technology, and the beautiful and sturdy key components are purchased from abroad to ensure excellent and stable performance.
It comes with a special data cable, which can be directly connected to the four-core antenna control socket on the back of the radio, and the radio can automatically control the antenna operation without additional manual settings and operations.
-
