Universal Multi frequency 300-868mhz garage gate door receiver

Working frequency: 300-900MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

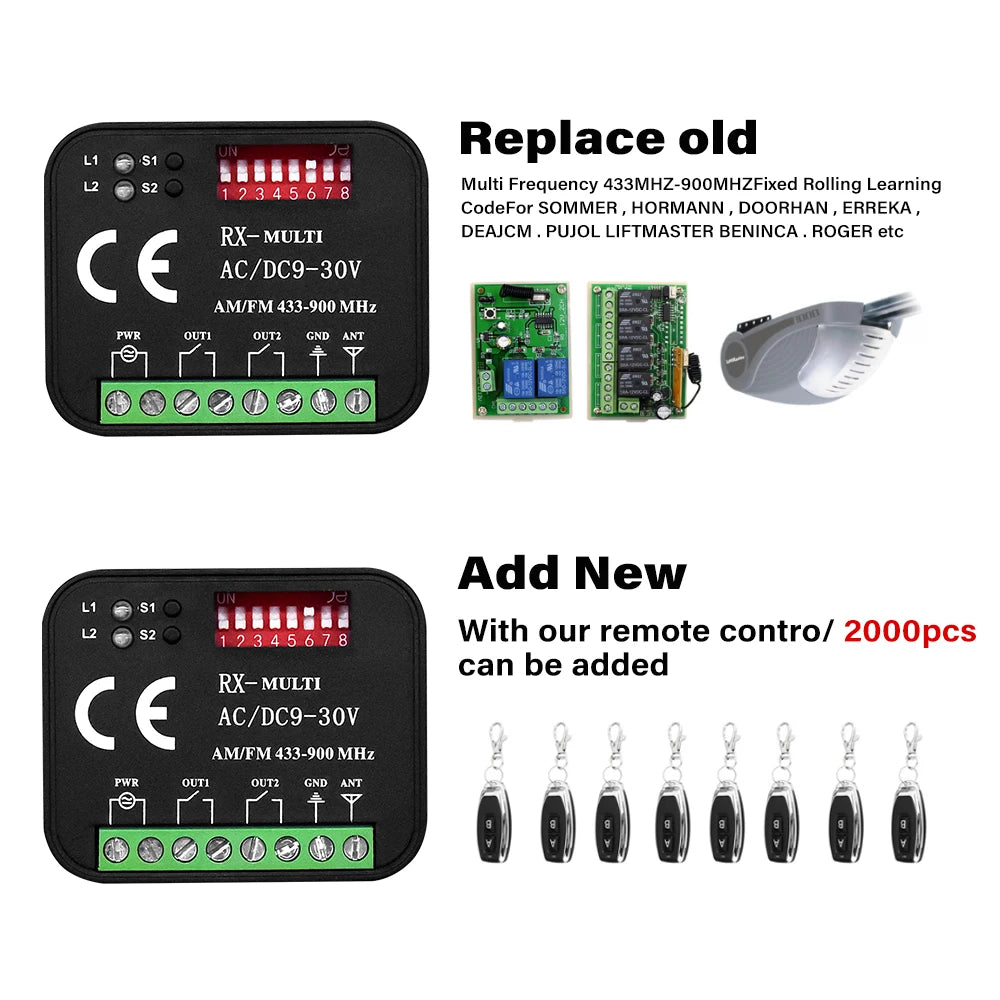

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

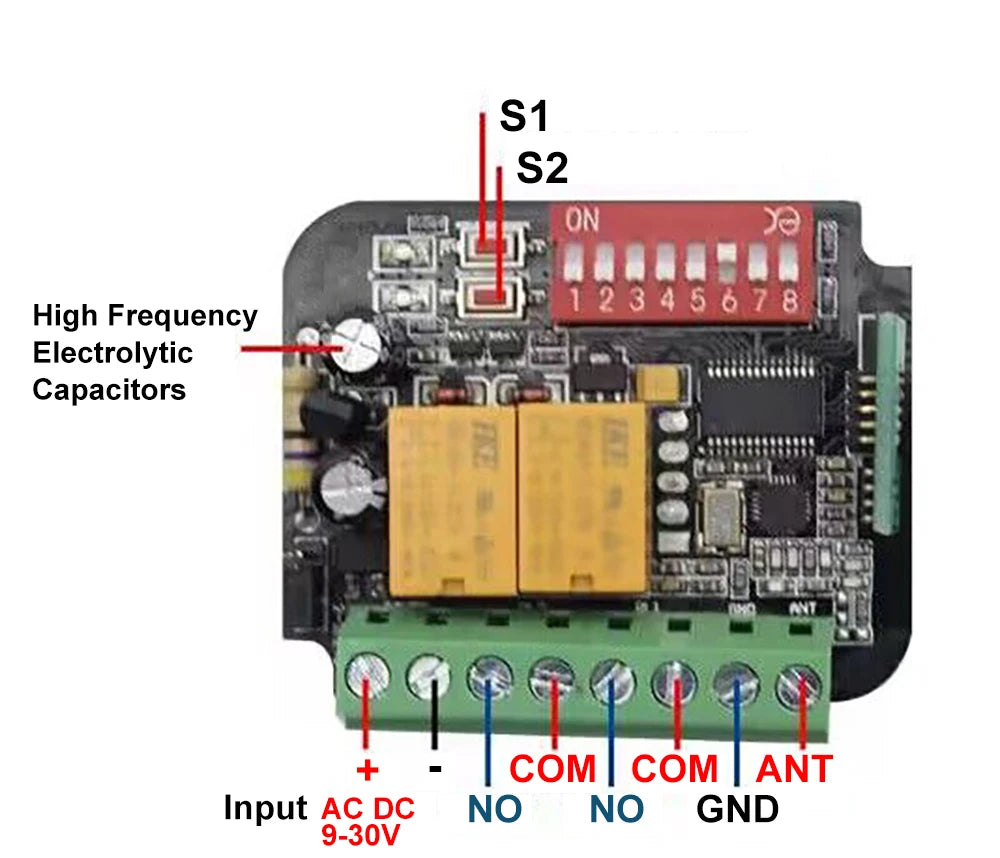

Specifications:

1)Name: Universal receiver SMG-662.

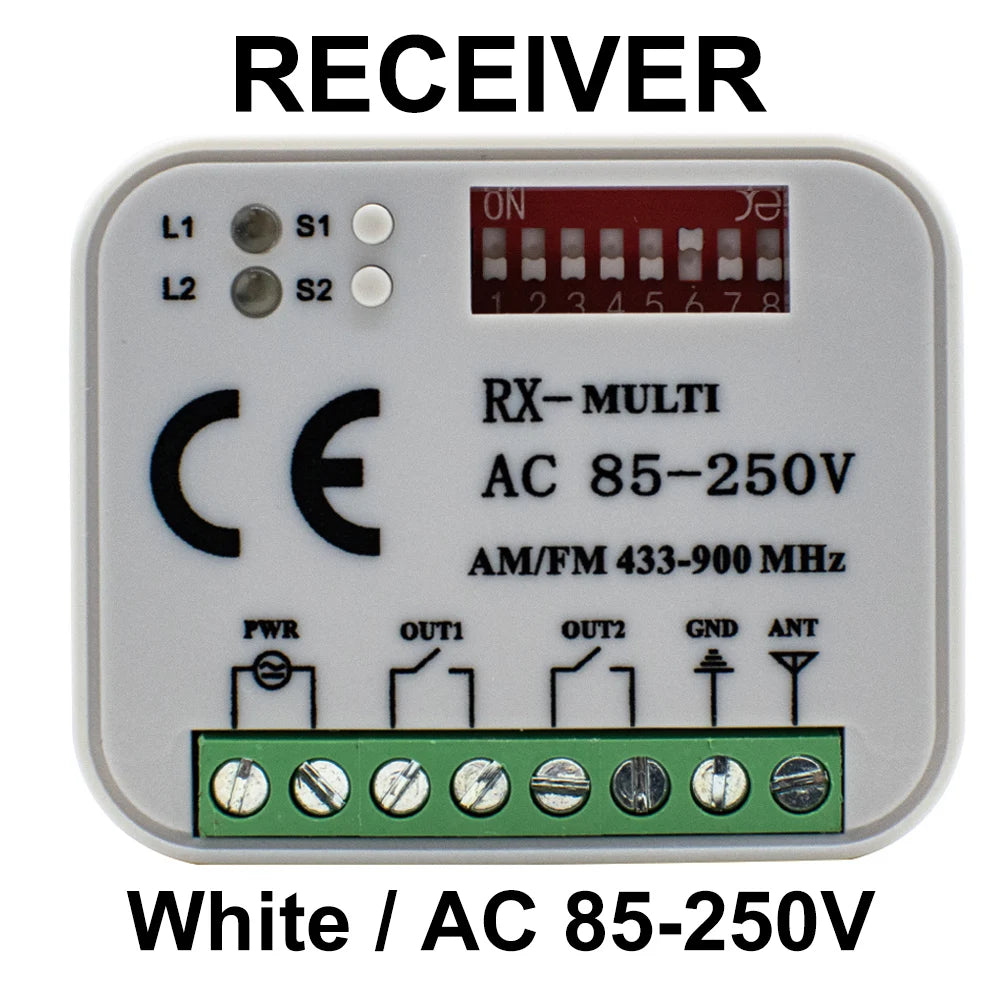

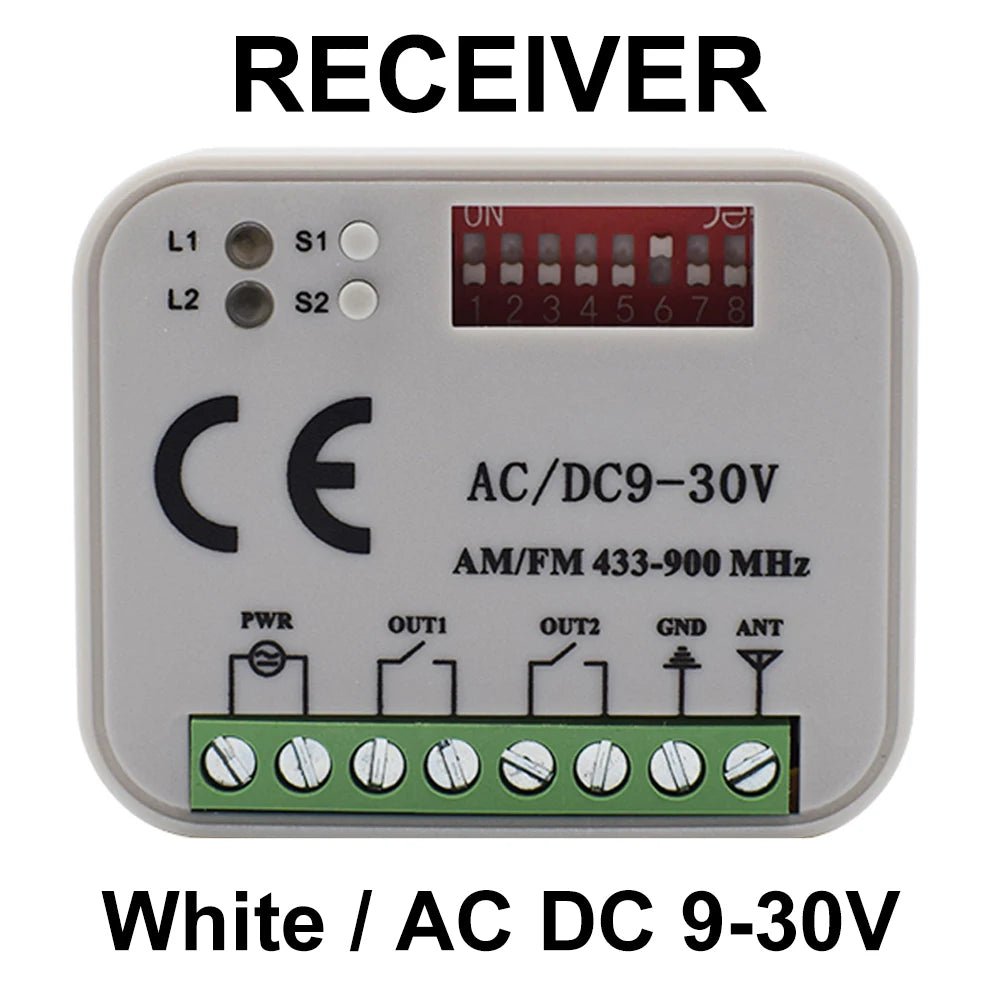

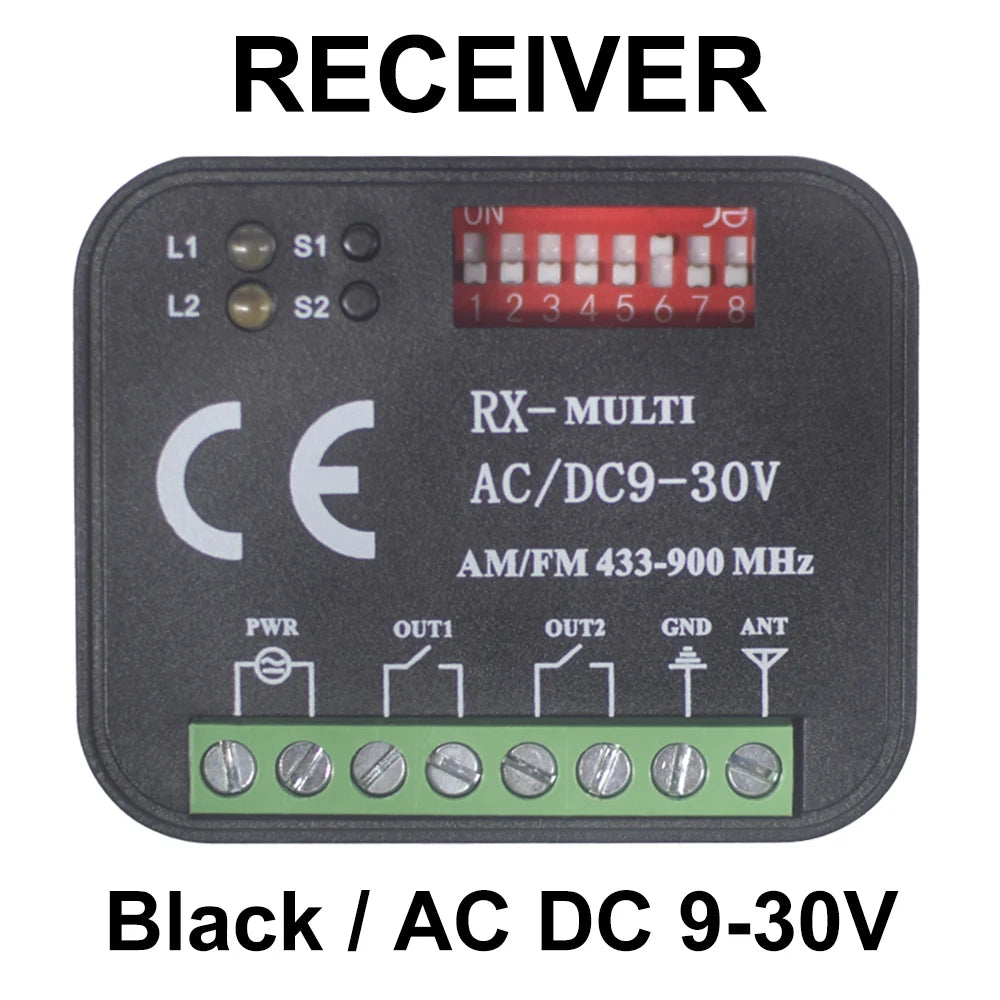

2)Operating Voltage: 9V-30V AC 85-250V
3)Channel: 2.
4)Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) One receiver can work with 400 codes.
8) It don’t interference other remotes and receivers.

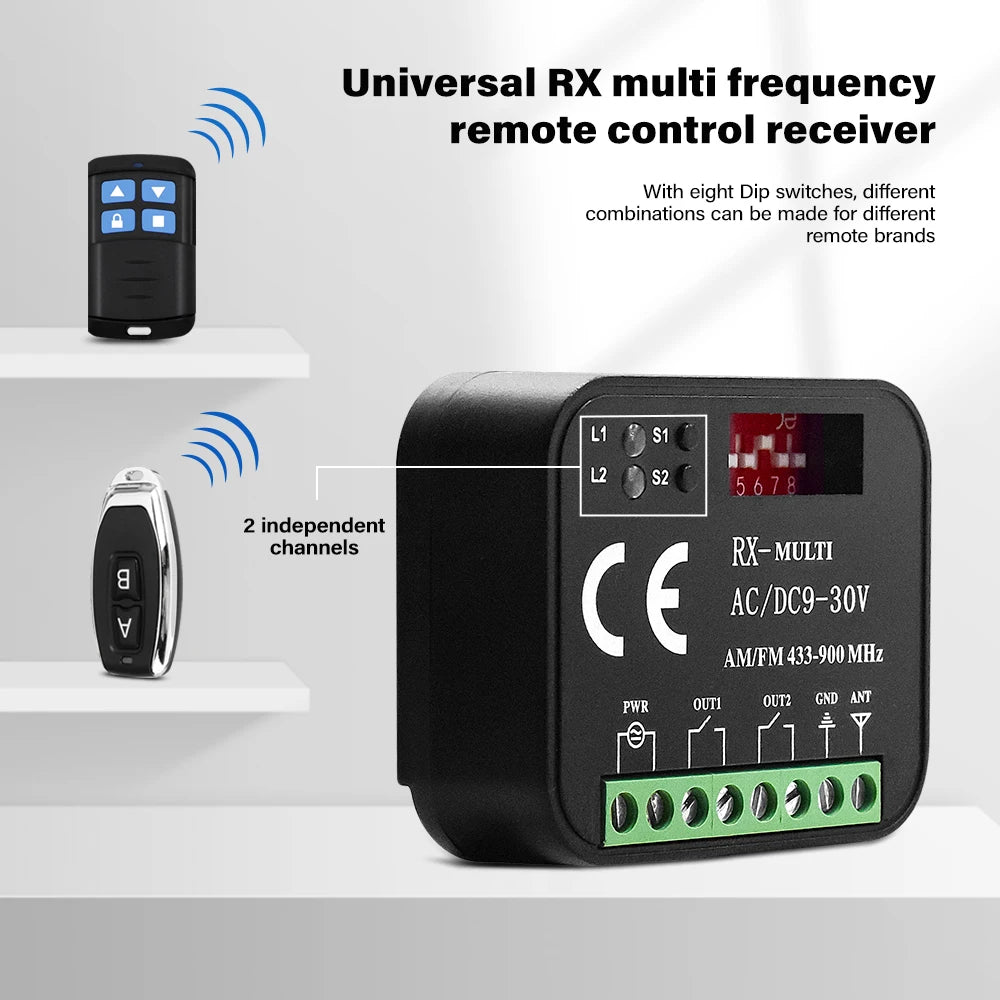

9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.

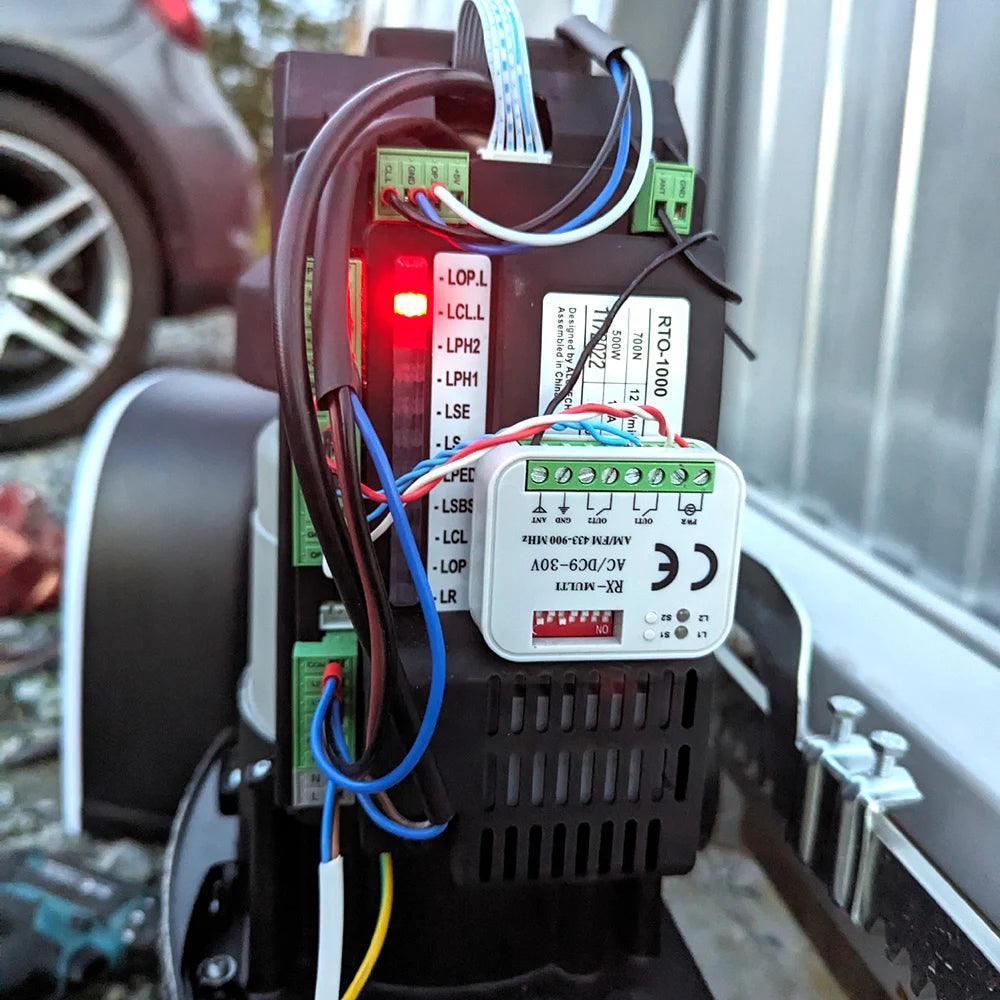

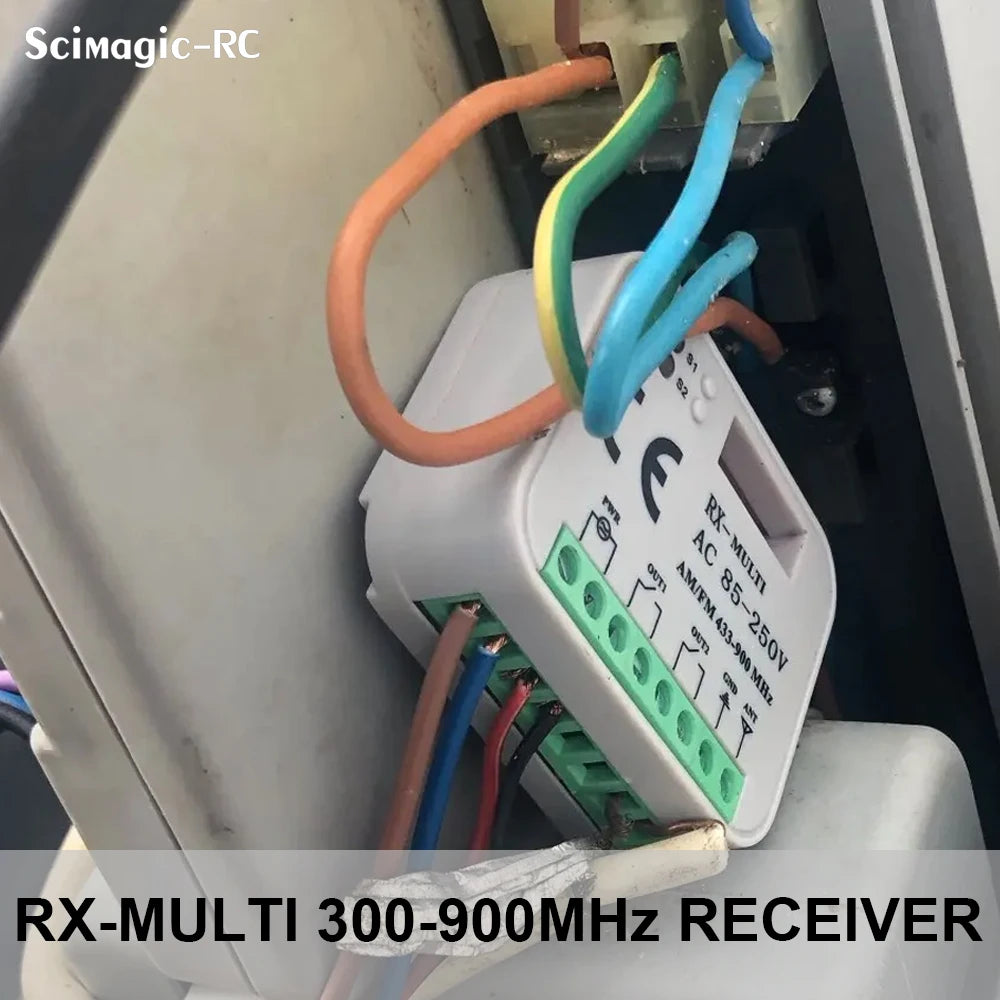

11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.

Programming a new remote

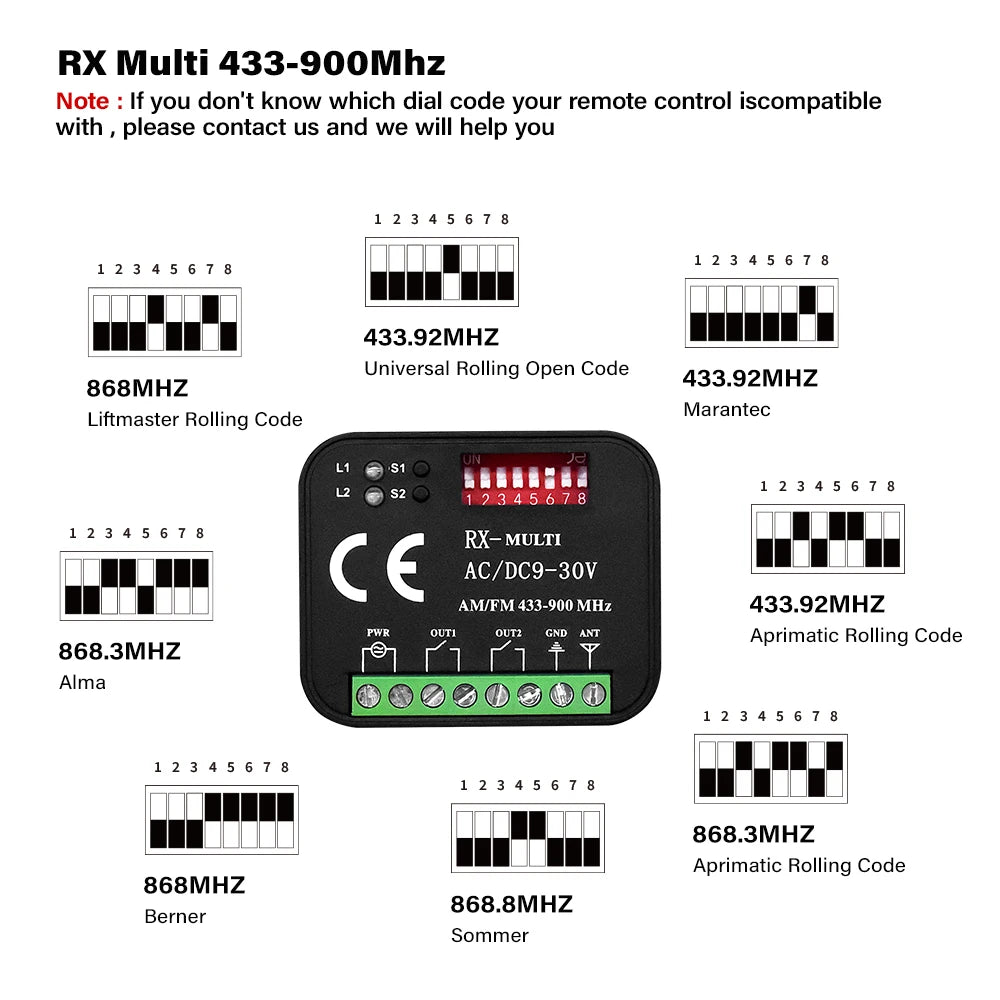

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.

2) Press the learn button. The will LED turn on.

3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.

4) Repeat step 2 for another button.

5)The 2-nd channel programming procedure is the same.

Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered

Work with 433MHz 1527 learning code remote control

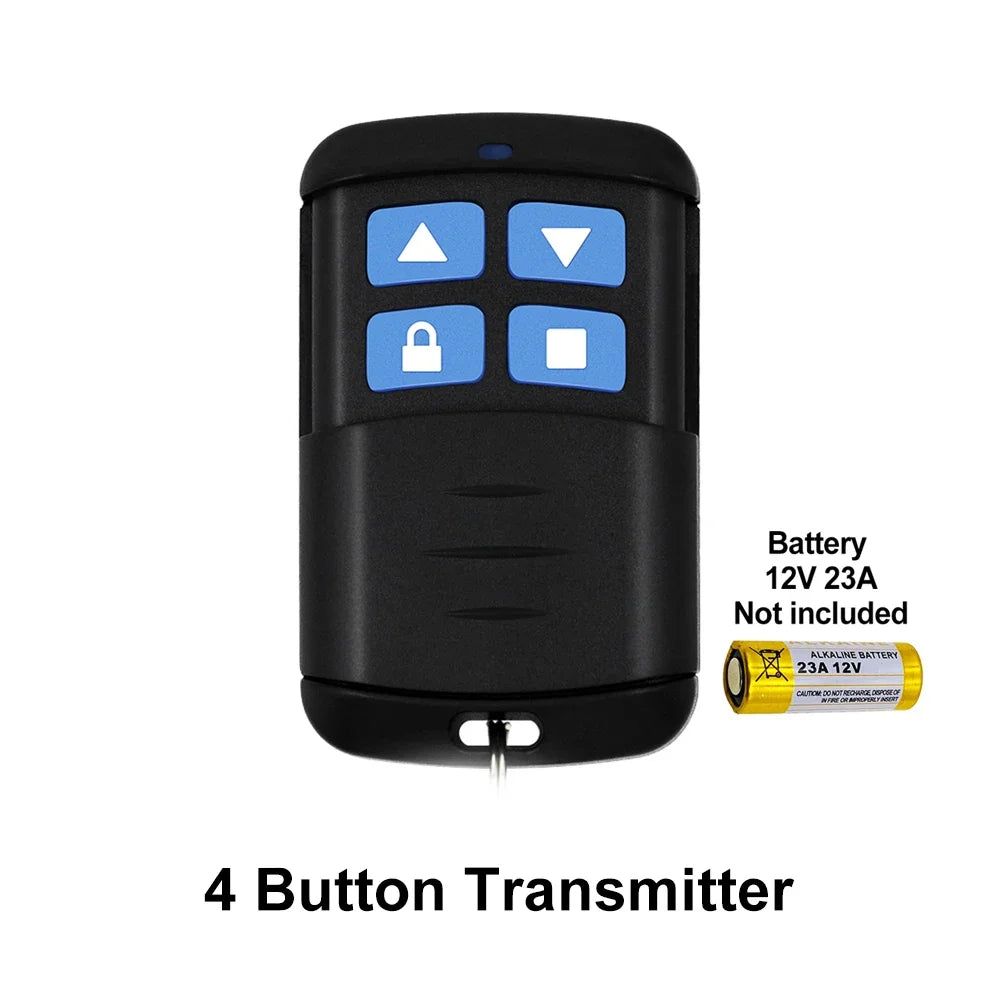

In order to better adapt to our receiver, it is recommended to choose to buy our remote control

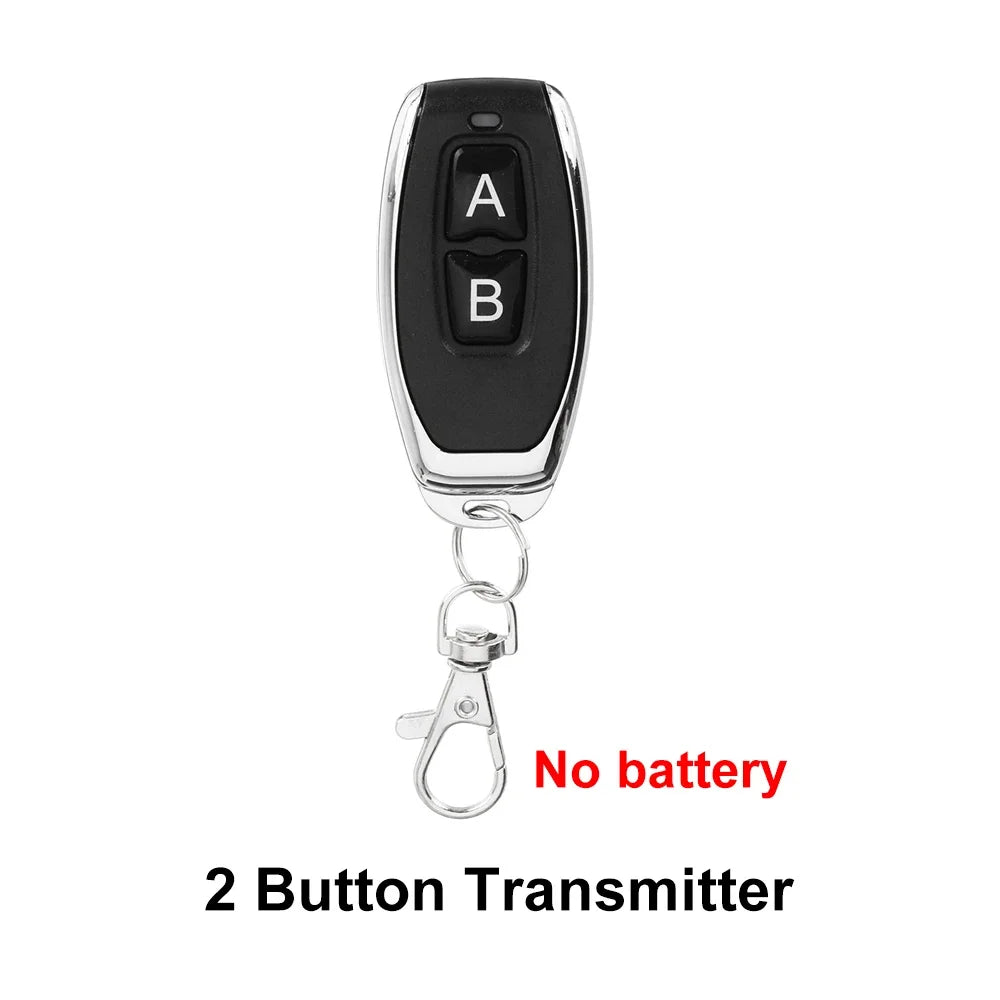

Note: no battery include
